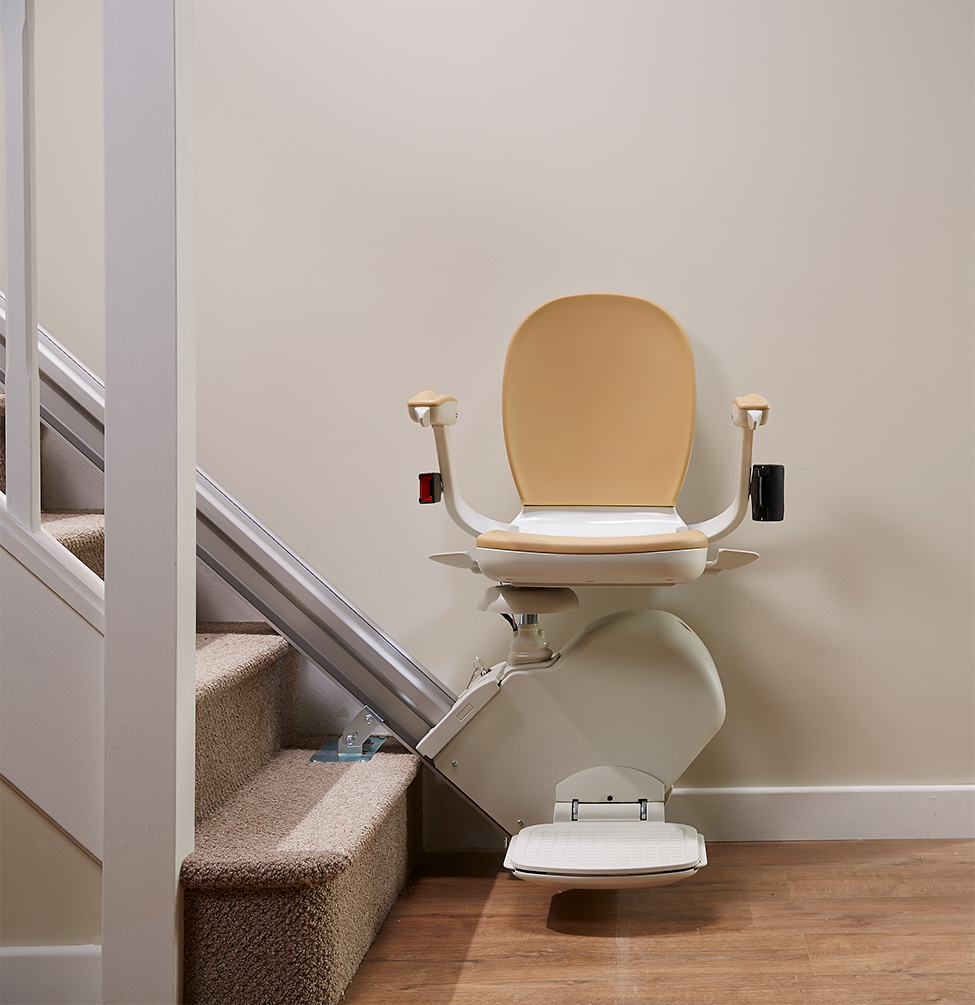

Straight Stairlift

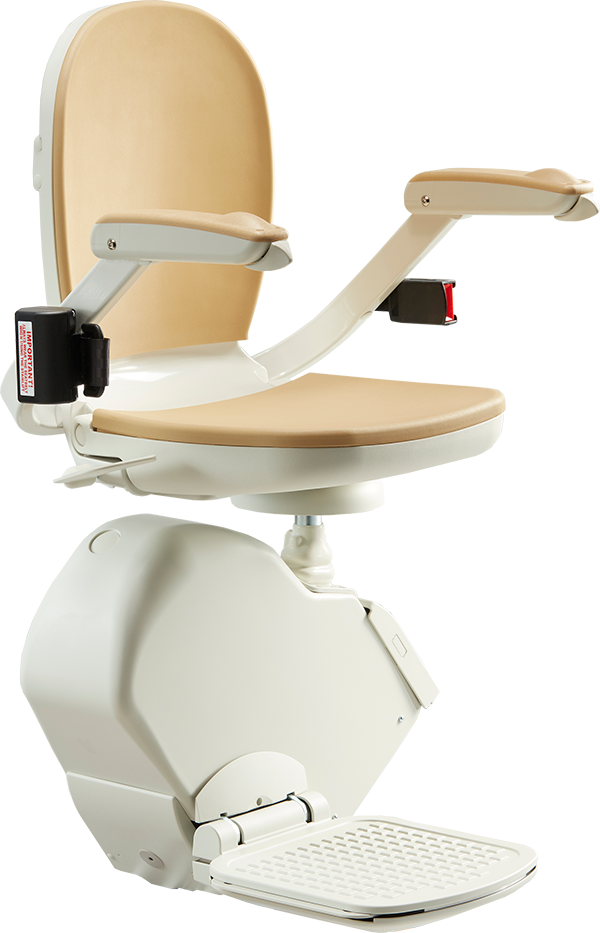

Acorn 130

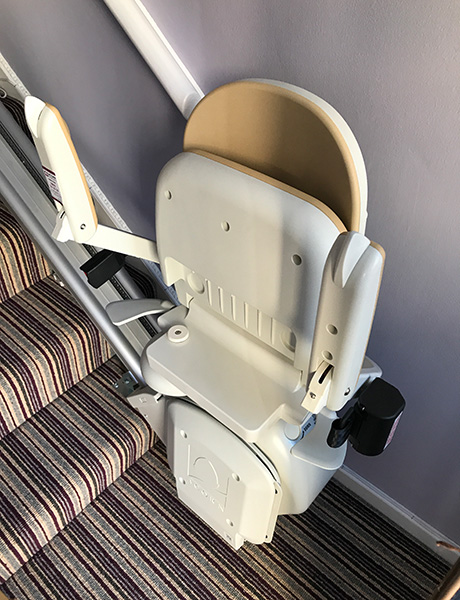

This stairlift is designed perfectly for your home's straight staircases
The ultimate solution that enables you to stay in the home you love and move about it as freely as your heart desires. The gentle start-and-stop mechanisms ensure maximum comfort as you glide seamlessly up and down your stairs, accessing parts of the home you couldn’t before.
The Acorn 130 is the most cutting-edge, innovative model of our original stairlift for straight stairs. Acorn has continued to improve and refine the Acorn 130 over the years to always meet the high global standards that we strive for.
FREE Quote for a Straight Stairlift
We offer a FREE, no-obligation quote and home survey before you commit to your life-changing lift.
What is the Cost of a Straight Stairlift?
The cost of a straight stairlift from Acorn Stairlifts is excellent value for money because our customers receive their stairlifts straight from the manufacturer.
Price is determined based on the unique measurements of your home and your specific needs. Because Acorn’s lifts are tailored to your home, costs vary and are unique to each installation.
Stairlift Hinged Rail Option
All Acorn Stairlifts are available with a unique, foldable, rail option designed to remove any obstacle or trip hazard at the foot of the stairs, so all members of the family can navigate through your home with ease. Acorn stairlifts have all the features you need and none that you don’t.
Security and Convenience
- Reliable backup battery
- Simple diagnostic display
- User-friendly remote control

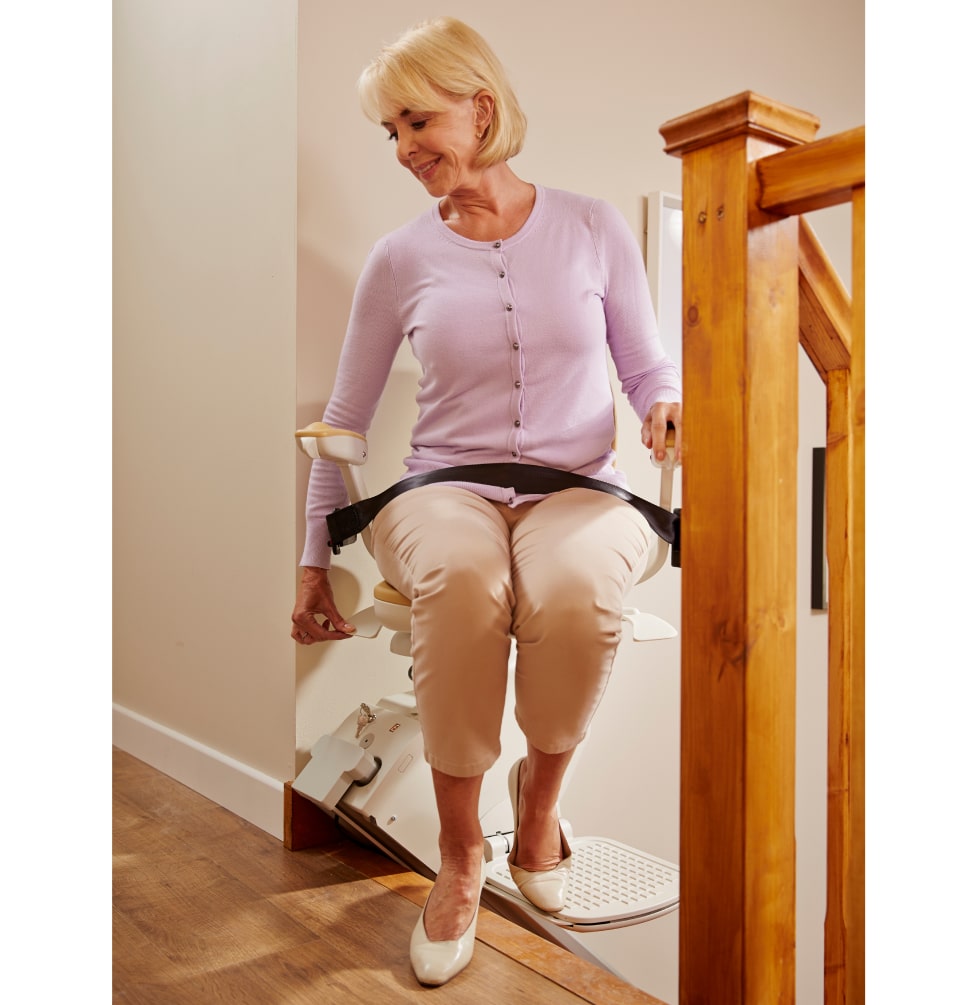

- Secure seat belt
- Convenient folding foot rest

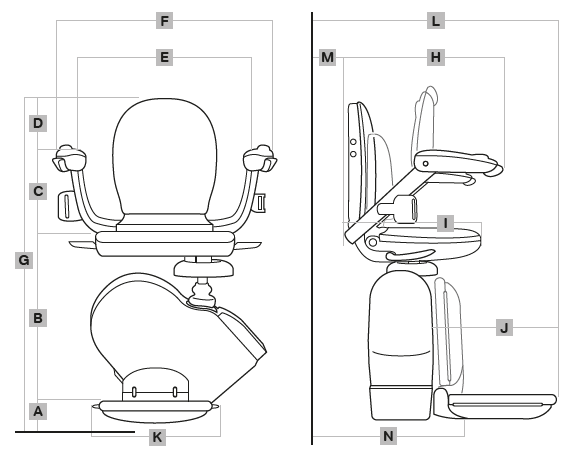

Technical Details
| Dimensions | mm | inch | |
|---|---|---|---|
| A | Floor to top of footrest | 95 | 3.75 |
| B | Top of footrest to top of seat (Short) (Tall) | 445 (410) (505) | 17.5 (16.25) (19.75) |
| C | Top of seat to top of arms | 250 | 9.75 |
| D | Top of arms to top of seat back | 190 | 7.5 |
| E | Width between armrests (Wide arm version) | 445 (495) | 17.5 (19.5) |
| F | Overall width | 605 | 23.75 |
| G | Overall height to floor | 980 | 38.5 |
| H | Length of arms from seat back | 470 | 18.5 |
| I | Length of seat base from seat back | 435 | 17 |
| J | Length of footrest | 325 | 12.75 |
| K | Width of footrest | 310 | 12.25 |
| L | Front of footrest to stringer | 570 | 22.5 |
| M | Back of seat to stringer | 13 | 0.5 |
| N | Folded width | 310 | 12.25 |
| O | Minimum width required to swivel at top | 670 | 26.25 |
| P | Distance from front of rail to stringer (Wide arm version) | 215 (240) | 8.5 (9.5) |
This stairlift is independently tested and manufactured to the following standards:
- BS EN 81-40:2020 - European safety standard - ‘Specification for powered stairlifts’.
- CE mark - Acorn Stairlift meets the requirements of the applicable European Directive(s).
- ISO 9386:2-2000 International standard for stairlifts.
| Specifications | |
|---|---|
| Motor output speed | No greated than 0.15 metres per second |
| Method of drive | Rack and Pinion |
| Carriage Power | 24v DC batteries |
| Motor Power | 0.25KW |
| Maximum capacity | 127kg |
| Maximum capacity HD version | 159kg |
| Power supply input range | 50-60Hz, 120-240V AC |
* NOTE: Acorn, in keeping with its policy of continual development, reserves the right to change specification without notice. All measurements are approximate.
Angles
| Standard Indoor 130 | |
|---|---|
| Short seat post | 40-55° |
| Standard seat post | 29-55° |
| Tall seat post | 23-55° |
| Power Swivel 130 | |
|---|---|
| Standard seat post | 36-55° |
| Tall seat post | 23-55° |
| Outdoor 130 | |
|---|---|
| Standard seat post | 27-55° |
Maximum Rail Length
| 10 metres | 394 inches |
Safety Features
Security and Convenience
- Reliable backup battery
- User-friendly remote control
- Convenient folding foot rest
- Simple diagnostic display
- Secure seat belt
This stairlift is independently tested and manufactured to the following standards:
- BS EN 81-40:2020 - European safety standard - ‘Specification for powered stairlifts’.
- CE mark - Acorn Stairlift meets the requirements of the applicable European Directive(s).
- ISO 9386:2-2000 International standard for stairlifts.
Dimensions
Technical Details
| Dimensions | mm | inch | ||
|---|---|---|---|---|
| A | Floor to top of footrest | 95 | 3.75 | |
| B | Top of footrest to top of seat (Short) (Tall) | 445 (410) (505) | 17.5 (16.25) (19.75) | |
| C | Top of seat to top of arms | 250 | 9.75 | |
| D | Top of arms to top of seat back | 190 | 7.5 | |
| E | Width between armrests (Wide arm version) | 445 (495) | 17.5 (19.5) | |
| F | Overall width | 605 | 23.75 | |
| G | Overall height to floor | 980 | 38.5 | |
| H | Length of arms from seat back | 470 | 18.5 | |
| I | Length of seat base from seat back | 435 | 17 | |
| J | Length of footrest | 325 | 12.75 | |
| K | Width of footrest | 310 | 12.25 | |
| L | Front of footrest to stringer | 570 | 22.5 | |
| M | Back of seat to stringer | 13 | 0.5 | |
| N | Folded width | 310 | 12.25 | |
| O | Minimum width required to swivel at top | 670 | 26.25 | |
| P | Distance from front of rail to stringer (Wide arm version) | 215 (240) | 8.5 (9.5) | |
Maximum Rail Length
| 10 metres | 394 inches |
Specifications
| Specifications | |
|---|---|
| Motor output speed | No greated than 0.15 metres per second |
| Method of drive | Rack and Pinion |
| Carriage Power | 24v DC batteries |
| Motor Power | 0.25KW |
| Maximum capacity | 127kg |
| Maximum capacity HD version | 159kg |
| Power supply input range | 50-60Hz, 120-240V AC |
* NOTE: Acorn, in keeping with its policy of continual development, reserves the right to change specification without notice. All measurements are approximate.
Angles
| Standard Indoor 130 | |
|---|---|
| Short seat post | 40-55° |
| Standard seat post | 29-55° |
| Tall seat post | 23-55° |
| Power Swivel 130 | |
|---|---|
| Standard seat post | 36-55° |
| Tall seat post | 23-55° |
| Outdoor 130 | |
|---|---|
| Standard seat post | 27-55° |
Straight Stairlift Features
Fits quickly and easily to your stairs, not the wall
No structural changes to your home required
Affordable and reliable, with a low cost of ownership

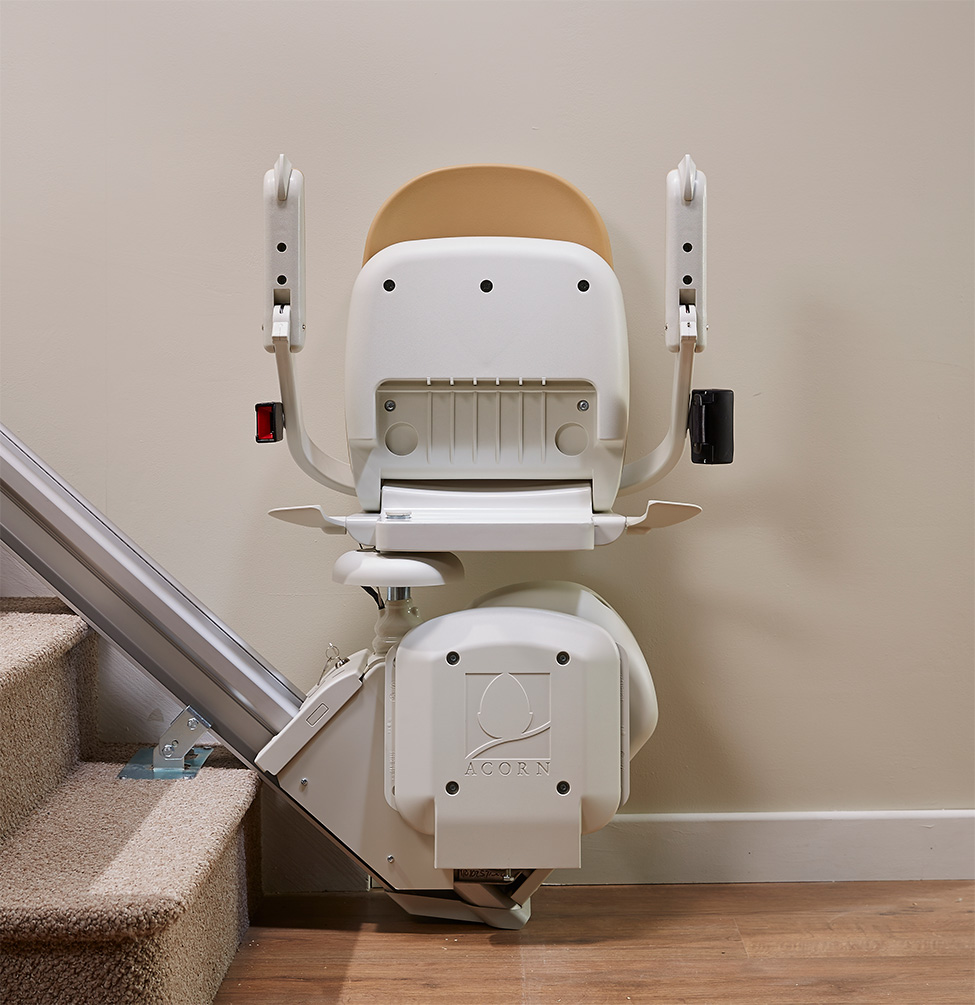

Slim design and collapsible when not in use
Optional folding rail to avoid tripping hazards
12-month Manufacturer’s Guarantee

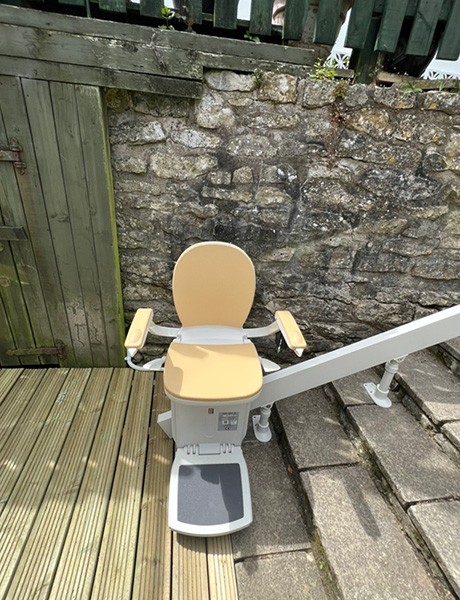

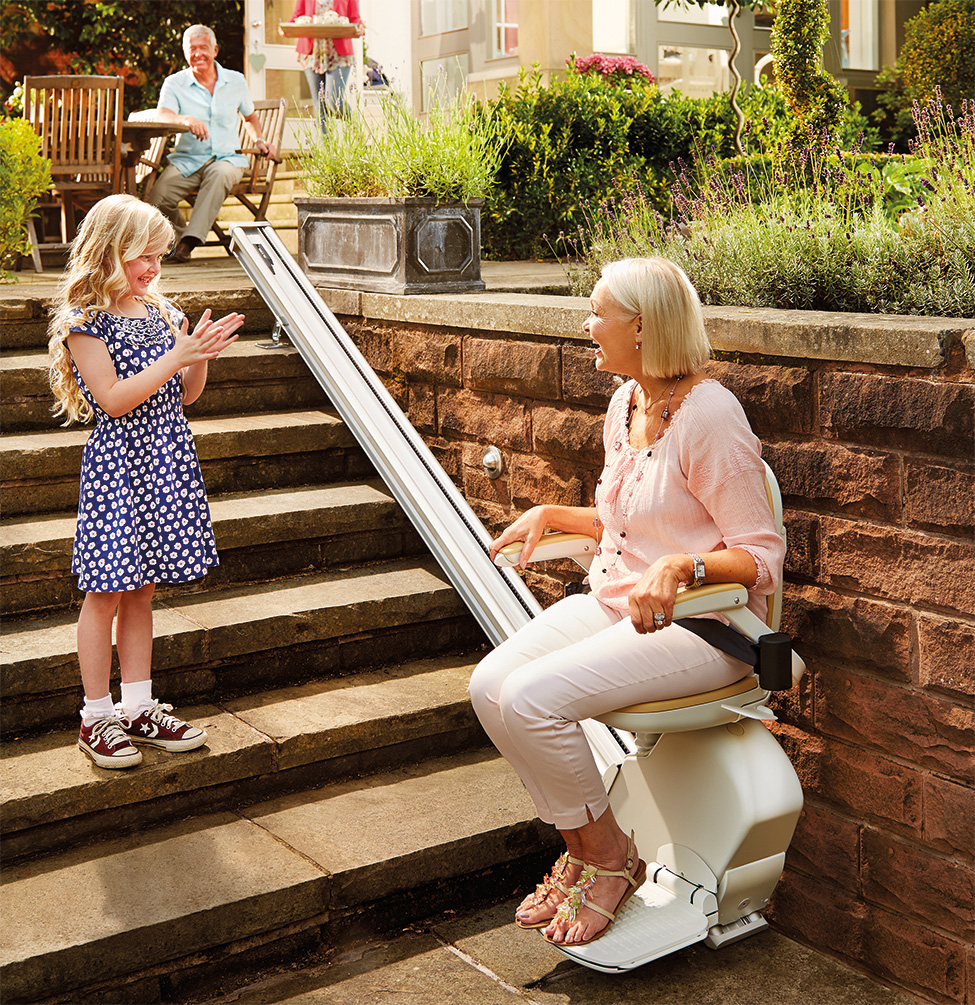

Outdoor Option Available
This Acorn stairlift is the weatherproof version of the inside lift, specially developed for the unpredictable nature of the great outdoors. Like Acorn’s other stairlifts, installation is quick and easy with a rail that is directly attached to the staircase, rather than the wall.
The outdoor stairlift is mounted directly onto the steps, not on the wall

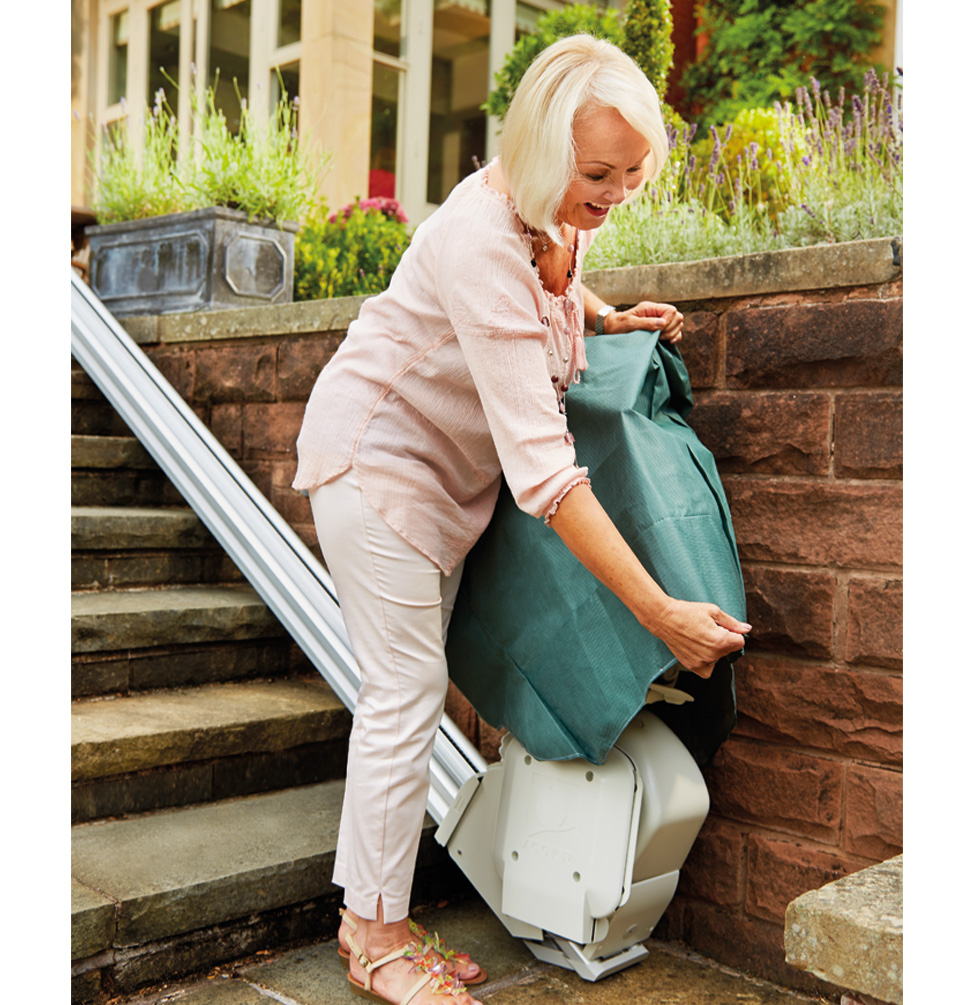

It comes with a water-resistant, weatherproof, outer cover for extra protection from the elements

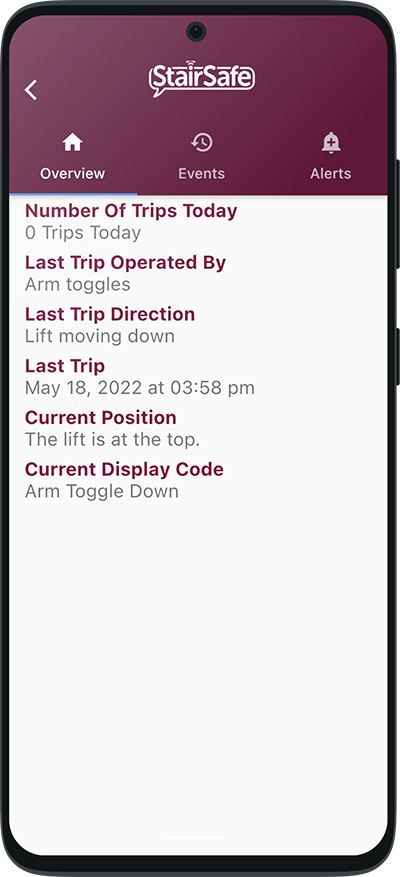

The Newest Stairlift Safety Feature
Acorn is proud to launch the ground-breaking StairSafe monitoring system for your Acorn Stairlift. This one-of-a-kind, additional feature will monitor the activity of your stairlift, providing you and your family with peace of mind.
The StairSafe system consists of a small module installed in your Acorn Stairlift which monitors the location, journey, and usage. All this data feeds back to StairSafe HQ, where if an error is detected, we'll notify you. StairSafe can ease some worries about safety and the possibility of having to pay for maintenance.
Frequently Asked Questions
Have more questions? Visit our FAQ page to get all your stairlift questions answered.
How wide do stairs need to be for a stairlift?
At Acorn Stairlifts, we aim to fit even the narrowest of staircases. Our Acorn 130 needs only 66.04 centimetres to ensure that the user can swivel around comfortably. One of our fully trained surveyors can assess your staircase to ensure that a lift is possible.
Are stairlifts safe?
They are extremely safe because they are manufactured to the highest standards including: BS EN 81-40:2008 – European Safety Standards and ISO 9386-2:2000 – Worldwide Standard for Stairlifts . All Acorn-employed technicians are only the best and have been trained to successfully meet these impeccable standards.
Do straight stairlifts move at a fast speed?
The maximum rated speed is 0.15 meters per second to ensure safety while riding.
Can you shorten a straight stairlift?
Most Acorn stairlift rails can be shortened, but this must be done by an Acorn-approved technician.
